how to delete a single math channel

Rick Emerling

Posted on 04.08.2016 21:23

I must be overlooking something obvious... I have some unused math channels defined and would like to delete them. If I'm in Acquisition mode and viewing the Math tab, pressing "-" will remove all of the math channels, no?

Anže Baš
Software Test Engineer I

Posted on 05.08.2016 07:01

Hi, Rick

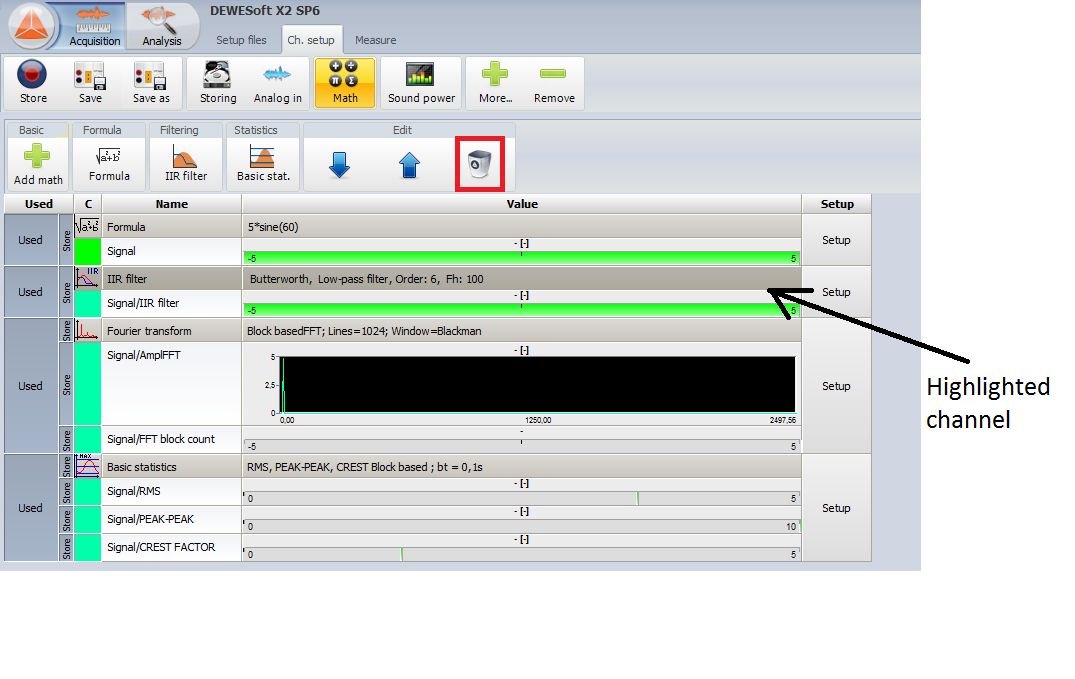

to delete a single math channel you need to click on the math channel you want to delete so it gets highlighted and then you click on the trash bin button.

Attached files:
